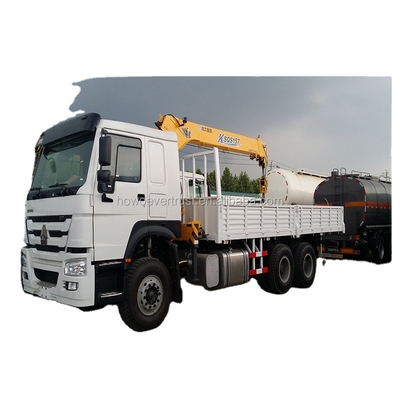

TRUCK CRANE Low price 371hp SINOTRUK HOWO telescopic cargo boom truck mounted crane 10 ton truck with crane for sale

Description

HOWO 6x4 truck with crane

Vehicle Main

Dimensions

(L x W x H)mm

11700*2496*3635

Wheel base (mm)

5825+1350

Weight in KGS

Curb Weight

15000

GVW

25000

Max. driving speed(km/h)

102

Engine

Model

WD615.69

Type

4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

336

Emission standard

Euro II

Gearbox

10 forwards& 2 reverse

Fuel Tank

300L

Clutch

Reinforced diaphragm clutch, diameter 430mm

Tire

1200R20, 10+1 spare

Brakes

Service brake: dual circuit compressed air brake

Steering Gear

power steering, hydraulic steering with power assistance

Equipment for Crane Mounted Parts

Working Platform

360°turning(left or right), H-shape legs 360°

Cargo Box

8200×2300×500mm

Equipment

Crane can be selected

Hydraulic valve is universal in the world on the safe side;

three point floating type to protect crossbeam of the truck;

all hydraulic pressure and 360°turning;

new H-shape type; high precise drawn tube;

Crane specifications

Brand : Xugong

Max lift capacity: 6300 kg

Max working radius 10 m

Lifting Max. Height 12.5m
