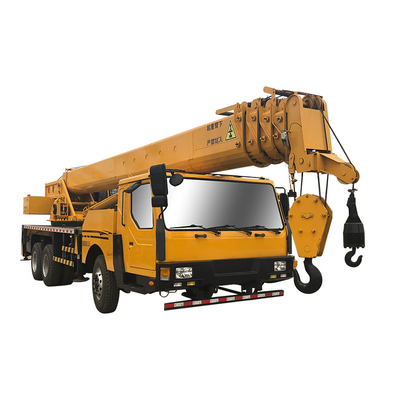

TRUCK CRANE Improved-Type Truck Crane Boom Cranes Pickup Truck Bed Crane

1.0 Sets
MOQ
TRUCK CRANE Improved-Type Truck Crane Boom Cranes Pickup Truck Bed Crane
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Feature: TRUCK CRANE
Showroom Location: None
Condition: New
Application: Building.
Rated Loading Capacity: 20 ton
Rated Lifting Moment: Customized
Max. Lifting Height: Other
Span: Customized
Warranty: 1 Year
Hydraulic Cylinder Brand: Customized
Hydraulic Pump Brand: Customized
Hydraulic Valve Brand: Customized
Engine Brand: Customized
UNIQUE SELLING POINT: High operating efficiency
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Pump, Gearbox, Engine
Product Name: Truck cranes
Size: Customized
Wheelbase: 4350+1300mm
Rear axle load: 9000kg
Front and rear track: 1780/1700mm
Front suspension shock absorption: 1450/3350mm
Rear suspension shock absorption: 1450/3020mm
Total mass: 25000kg
Ground clearance: 450mm
450mm: 90km/h
Applicable Industries: Energy & Mining, Other
After Warranty Service: Video technical support, Online support
Local Service Location: None
After-sales Service Provided: Video technical support, Online support
Certificering: CE
Basis informatie
Certificering: CE
Betalen & Verzenden Algemene voorwaarden
Supply Ability: 1000000 Set/Sets per Month
Productomschrijving

Improved-Type trucks crane boom cranes pickup truck bed crane

Product Description
Engine
490 Weifang engine (customizable)
Boom
3m*3
Gearbox
145 gearbox 5+1 gear position, pneumatic push high and low speed
Hoist
5T
Rear axle model
1061 or 50 Ling
Cab
Fully enclosed cab
Drive way
Two-wheel drive (rear drive)
Board thickness
bottom5mm
side3mm
Car size
3*2*0.6m(customizable)
Tyre model
750-16wire tire
Unloading method
Automatic post-unloading
Steering method
Direction boost
Factory direct sales, OEM and ODM are available.
Engine
4102 Weifang engine (customizable)
Boom
3m*3
Gearbox
145 gearbox 5+1 gear position, pneumatic push high and low speed
Hoist
8T
Rear axle model
1061 or 50 Ling
Cab
Fully enclosed cab
Drive way
Two-wheel drive (rear drive)
Board thickness
bottom5mm
side3mm
Car size
3*2*0.6m(customizable)
Tyre model
750-16wire tire
Unloading method
Automatic post-unloading
Steering method
Direction boost
Factory direct sales, OEM and ODM are available.
Product size
10200*2400*3400mm
Total mass
15800kg
Wheelbase
3900mm
Front axle load
5600kg
Front and rear track
1780/1700mm
Rear axle load
10175kg
Maximum travel speed
80km/h
Engine model
4DX23-130E5
Approach angle
16 degrees
Engine rated power
97.5kw/rpm
Departure angle
8 degrees
Maximum rated lifting weight
12T
Maximum grade
25%
Minimum working radius
2.6m
Maximum speed of single rope of main winch
90m/min
Outrigger span
5*6.6m
Maximum speed of single rope of auxiliary winch
90m/min
Lifting height（basic arm/full extension arm）
8.1m/32m
Boom fully extended/retracted time
75/60s
Boom length（basic arm/full extension arm）
7.2m/32m
Boom up/down time
60/30s
Maximum lifting moment（basic arm/full extension arm）
420/160 kn.m
Maximum turning speed
2r/min
Outrigger full extension/retraction time
28/16s
Factory direct sales, OEM and ODM are available，If you have any questions, please consult us freely.
Product size
126700*2550*3700mm
Front axle load
7000kg
Wheelbase
4350+1300mm
Rear axle load
9000kg
Front and rear track
1780/1700mm
Front suspension shock absorption
1450/3350mm
Tyre model
1100R20*11
Rear suspension shock absorption
1450/3020mm
Total mass
25000kg
Boom
9.5m*5 U-shaped boom
Ground clearance
450mm
Winch configuration
Main and auxiliary double hook double 20 tons crooked handle winch
Top speed
90km/h
Slewing mechanism
1.6m internal gear turntable, big planet chengspeed engine
Maximum rated lifting capacity
20T
Hydraulic system
Three pumps confluence
Horizontal outrigger span
69000mm
Emission Standards
National Three
Longitudinal outrigger span
5520mm
Chassis model
EQ1250GLJ2
Front track
1940mm
Engine data
YC6JA240-50
Other
Full coverage of the platform, double-sided outrigger operating rod, wireless electronic throttle, XCMG operation room, with crane special box beam motor, optional front outrigger.
Factory direct sales, OEM and ODM are available，If you have any questions, please consult us freely.
U-shaped manganese steel boom
High strength, high toughness, easy to install and maintain.
Card sleeve galvanized steel pipe oil circuit
Good air tightness, long service life, inlaid integrated double winch, easier lifting.
Hydraulic outrigger
The whole machine has good hidden qualitative, and the compound action is smooth and smooth.
Box girder
High strength, strong bearing capacity, good resistance to torsion, no deformation in use.
Product Application

The crane is suitable for complex road conditions such as swamps, river beaches, deserts, tropical rainforests, and snow.
Why Choose Us
Relate Products
Packing & Delivery
Company Profile
FAQ
1. Who are we?

We are based in Shandong, China, sell to Domestic Market,Southeast Asia,Eastern Europe,South Asia,Africa,Eastern Asia,South
America,Oceania,Northern Europe,Central America,North America,Mid East.
2.Do you offer any custom designs?
Yes,we have our own factory. We provide services to top range partners.Produce a superior product for you by your designs.

3,How to make sure the quality we sent to you is same with what we said?
We are the Golded supplier on Alibaba, order through the alibaba trade assurance, will ganrantee the safe of your money and the
quality of the goods.

4.How to order ?

Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.

5.After-sales service?

1 year warranty for all kinds of products;If you find any defective accessories first time, we will give you the new parts for
free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.

6.Whether we can visit your factory?

Yes ,you are warmly welcome to visit us .
