Thuis /Producten/de kraan van de boomvrachtwagen/CRANE TRUCK Yunlihong 8 tons 31 meters telescopic boom truck mounted crane for sale

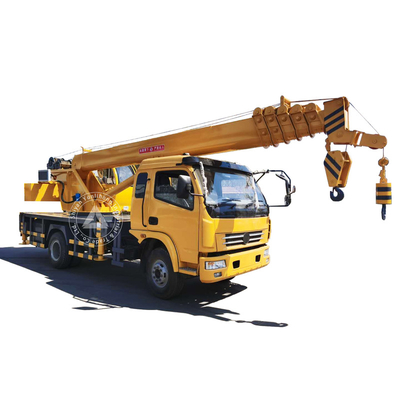

CRANE TRUCK Yunlihong 8 tons 31 meters telescopic boom truck mounted crane for sale

1 Unit
MOQ
$28,000.00(1 - 4 Units) $26,400.00(5 - 9 Units) $25,800.00(>=10 Units)
Prijs
CRANE TRUCK Yunlihong 8 tons 31 meters telescopic boom truck mounted crane for sale
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Feature: TRUCK CRANE
Showroom Location: None
Condition: New
Application: lifting
Rated Loading Capacity: 8 Ton
Max. Lifting Height: 31m
Span: 4.48m
Warranty: 1 Year
Hydraulic Cylinder Brand: YLH
Hydraulic Pump Brand: YLH
Hydraulic Valve Brand: YLH
Engine Brand: WEICHAI
UNIQUE SELLING POINT: Low Maintenance Cost
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Max. lifting weight: 8000kg
Telescopic arm: 6m * 6 knots, max. length 31m
Main hook / Vice hook: 8T plunger winch / 6T winch
Hook lifting speed: 95m/min (main) ; 70m/min (vice)
Engine model: 4102, diesel
Max. lift weight @31m arm length: 1000kg
Turntable: 1.2m gear
Top speed: 80km/h
Overall dimension: 9100x2110x3000mm
Tires: 750-16
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Advertising Company
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
After-sales Service Provided: Video technical support, Online support, Free spare parts
Certificering: CCC
Basis informatie
Certificering: CCC
Model Number: 4102, diesel
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Nude cargo with anti-rust treatment
Supply Ability: 2000 Unit/Units per Year
Productomschrijving

31 meter lifting capacity China 8 ton truck crane

Overall Parameters
Max. lifting weight 8000kg Telescopic arm 5m * 7 knots or 6m * 6 knots, max. length 28m
Engine model Weichai 4102 Max. lift weight @31m arm length 1000kg
Turntable 1.2m internal gear Ground clearance 400mm, OEM available
Working oil pump Single pump Motor power 15KW; Oil and electricity dual-use, all copper movement
Overall dimension 8000x2100x2650mm Tires 750-16
Top speed 80km/h Curb weight 10000kg
Driving type Right hand drive Chassis brand Yunlihong; OEM available
Bodyworks & Equipments
1. Equipped with double hook, double winch.
2. Equipped with center gyrator, turntable can rotate 360 °.
3. Equipped with planetary reducer; Faster and smoother rotation.
4. Equipped with steering wheel assistance to drive the vehicle more easily and flexibly.
5. Equipped with air brake, driving with high and low speed.
6. With 5pcs fully automatic hydraulics outriggers.
7. Equipped with hydraulic cooling system to reduce oil temperature and improve efficiency.
8. Equipped with a large frame, extending more than 1m outwards.

crane is wating for delivery

truck crane was is driven into the roro ship

truck crane is in the stock of destination port

Stock and factory corner show
